CITA SMART 11 Home & Office Premium Ev Charger

Name: CITA SMART 11 Home & Office Premium Ev Charger
Brand: CITA
SKU: CITA11SHO
Price: 899.0 GBP
Availability: InStock

Store / RESIDENTIAL

£899.00

Price incl. VAT (0%) £0.00

Installation Service

Home Installation ( +£395.00 )

Commercial Installation ( +£495.00 )

Installation Dates

Please choose a date

Booking Notes

Enter your text

In stock

Product Details

UPC: CS7HO

Brand: CITA

CITA brings you Smart, Simple, and Safe home and commercial charging solutions with the SMART 11. CITA charging systems combine cutting-edge technology with compact design, managing the communication between you and charger via an easy-to-use App experience.

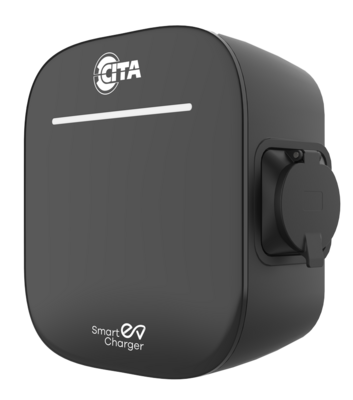

CITA Smart 11 charger is a compact and high-performance home & workplace charging solution. Smart 11 comes with maximum power up to 11 kW for three-phase installation and an integrated type 2 socket. Smart 11's compact housing design is less than 12-inch that operates in an extreme environment such as -30°C ice and snow season or 55°C hot and direct sunshine.

Smart 11 connects with CITA Connect App via WiFi and Bluetooth to provide you with real-time operation, charging insights and automatic power adjustment with dynamic load balancing.

CITA Connect App

You are powered by a smart application to manage all your CITA Smart 7 monitoring and settings from your iOS or Android mobile phone.

General Specifications

Charging Socket	IEC 62196 Type 2, IP54, locking
Charging Mode	Mode 3 (IEC 61851-1 / SAE J1772 compliant communication protocol)
6mA DC Trip	Integrated
IP Rating	IP54
Operating Temperature	- 30~ + 50°C
Product Dimension	300mm x 300mm x 130mm

Electrical Specifications

AC Nominal Input/Output

Phases/Lines	3 phase + netural+ PE
Voltage	400V±10% AC
Frequency	50/60Hz

AC Nominal Output

Phases/Lines	3 phase + netural+ PE
Voltage	400V±10% AC
Output Power	11kW
Output Current	6 - 16A programmable

Protection

Active Load Management	Yes, with external CT clamp (100A max)
Dynamic Load Balancing	Yes, via CITA cloud software
Warranty	3-years

Communication

Communication Method	WiFi, Optional: 4G/Ethernet
Mobile App Availability	Yes, Android and IOS App
Communication Protocol	OCPP 1.6 - JSON

About CITA

With a drive to make mobility 100% green, CITA EV is innovating towards powering a green future. We bring to you an EV charging experience that is simple, safe and smart. Our innovative design has made our product into a compact unit that is easily installable at homes and businesses alike. A team of experts have put their best tech minds together at CITA to make the communication between you and your charger as easy as possible. We have developed an application for the same that ensures maximum charging capability with minimal effort.

CITA EV is equipped to provide world-class charging solutions for homes, businesses and cities. With offices in the U.K. UAE and the USA, the progressive global presence of CITA EV chargers is now apparent, with partnerships covering Europe, the USA and the MENA region.
